Stock #  YFM7004872

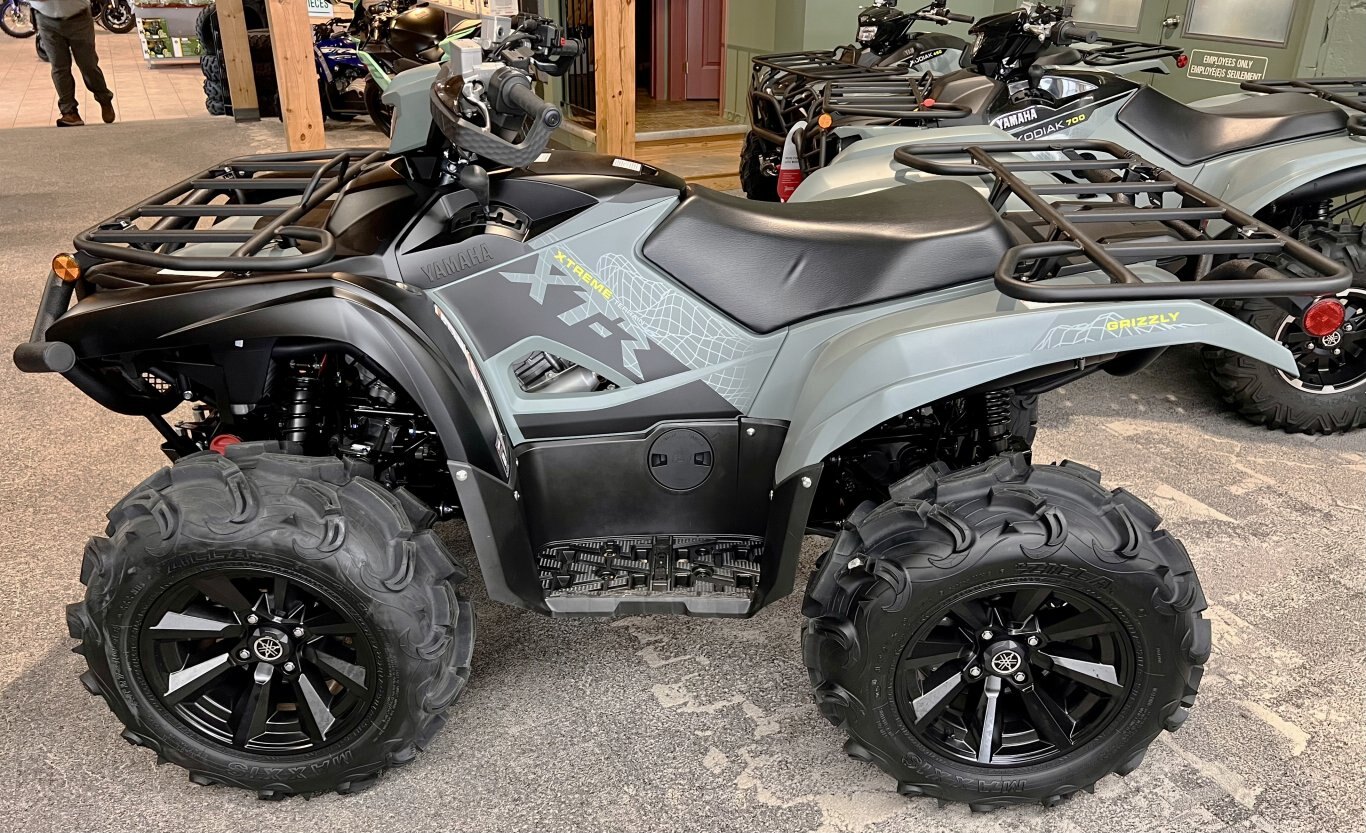

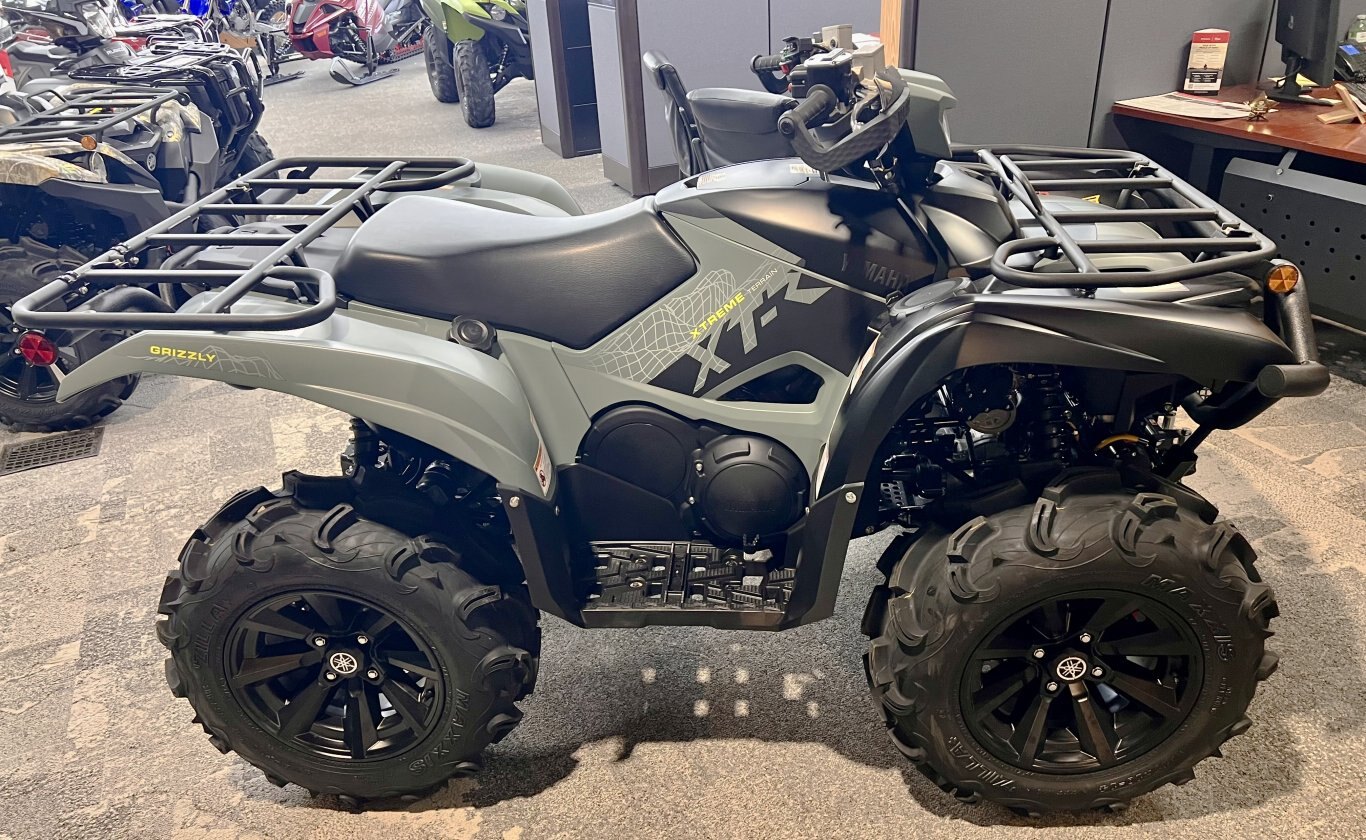

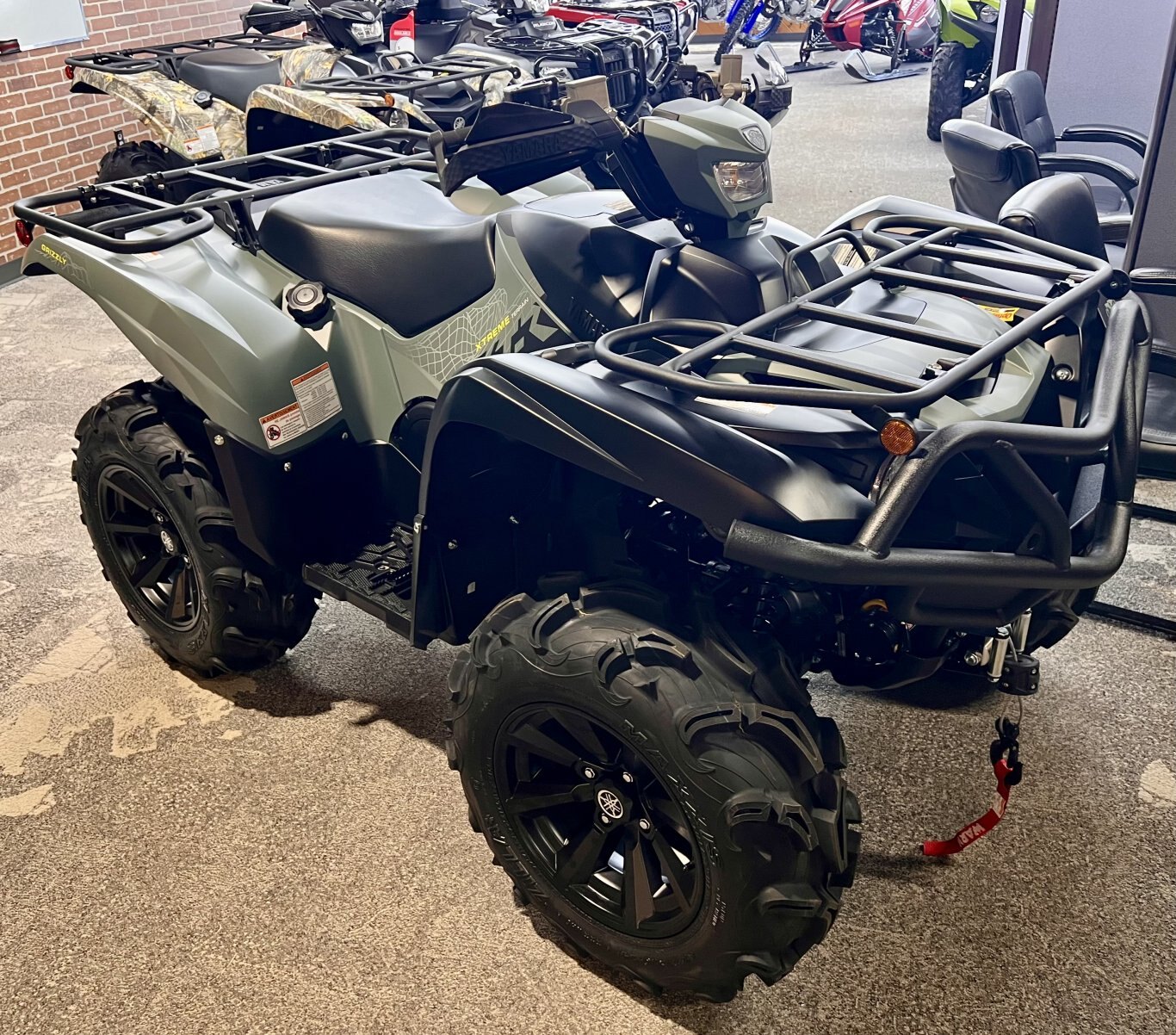

2026 Yamaha Grizzly EPS XT-R Grey/Black - Custom Build

  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
  • 2026 Yamaha Grizzly EPS XT R Grey/Black Custom Build
In Stock
Dealer Price $17,799 CAD
Package price. HST, licensing & $399 admin fee extra.
$73.86 Weekly 72 Months. 8.99% APR $0 Down Payment
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Built for serious off-road riding, the Yamaha Grizzly EPS XT-R is designed to handle rough terrain with confidence. With its aggressive stance, durable construction, and trail-proven power, it’s the kind of ATV that feels at home deep in the bush, on rocky trails, or working around camp.

From the factory, the XT-R package is ready for tough conditions. It rides on large 27-inch Maxxis Zilla tires mounted on 14-inch aluminum wheels, giving you excellent traction in mud, loose terrain, and uneven ground. A factory-installed WARN winch adds serious recovery capability when the trail gets unpredictable, while painted body panels provide extra durability to stand up to hard riding season after season.

This particular unit is equipped with additional accessories that make it even more trail-ready:

Included upgrades:

  • Hand guards to protect your hands from branches, brush, and debris

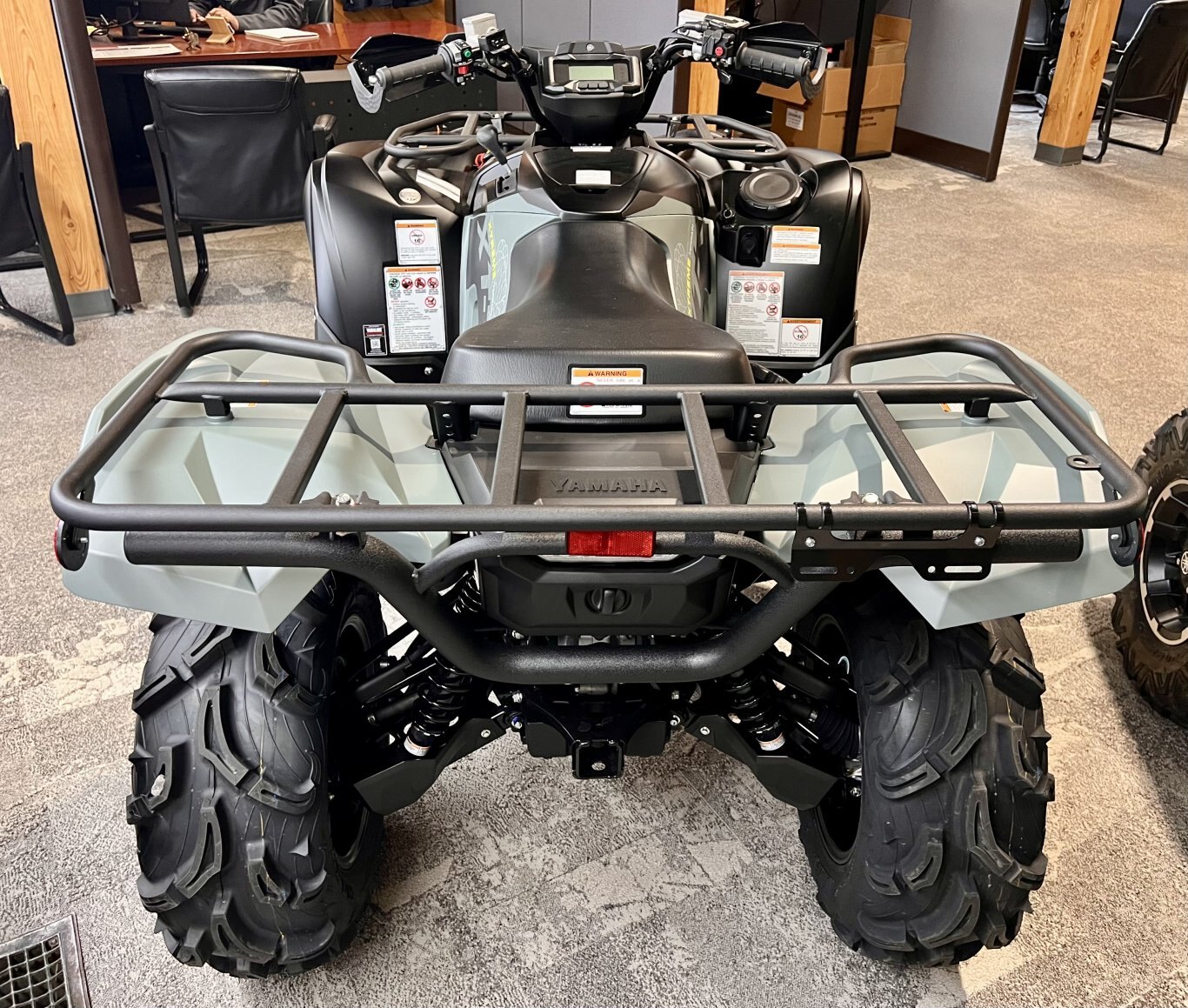

  • Rear grab bar for easier lifting, towing, or securing gear

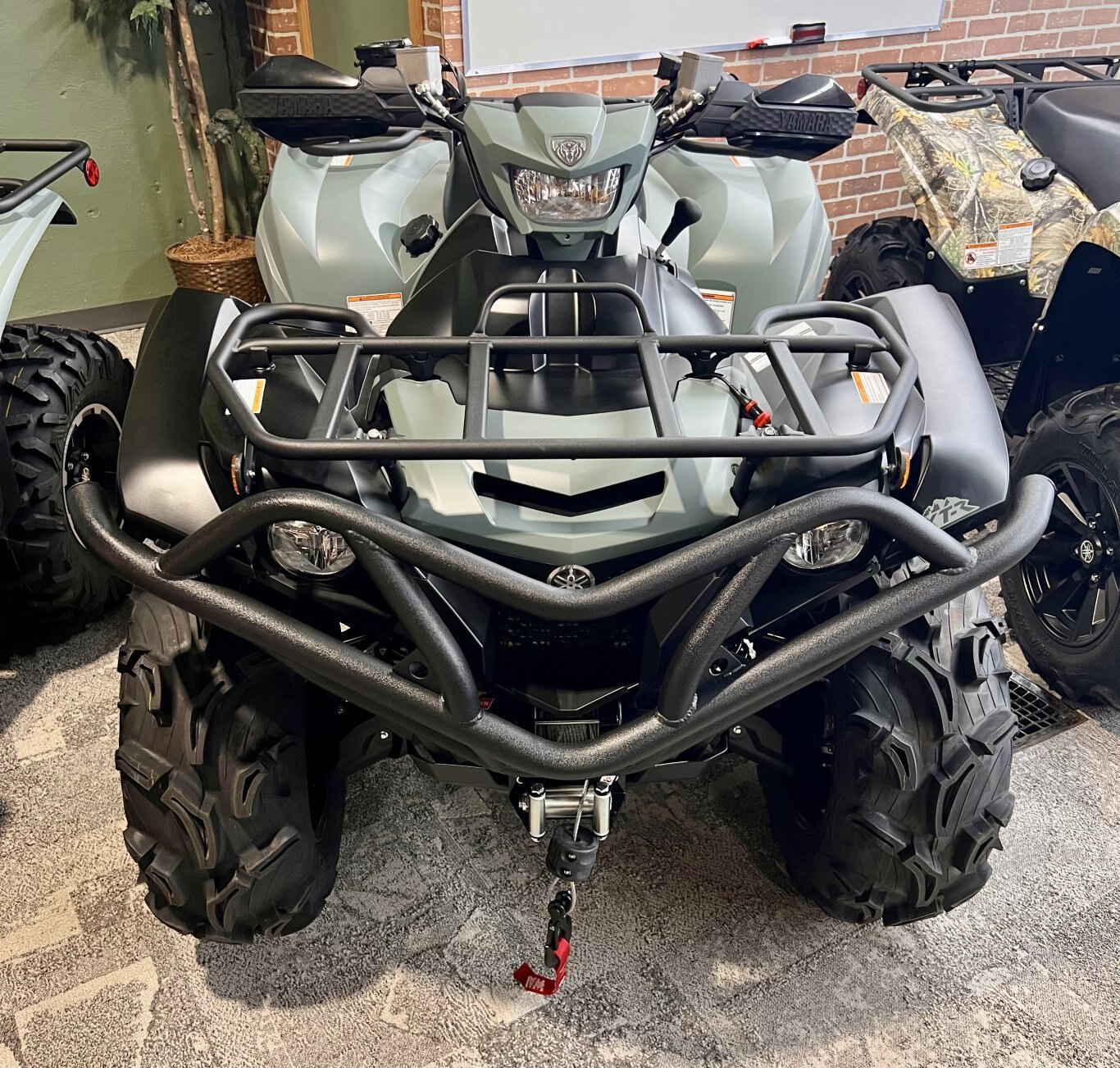

  • Front brush guard to help protect the front end from impacts

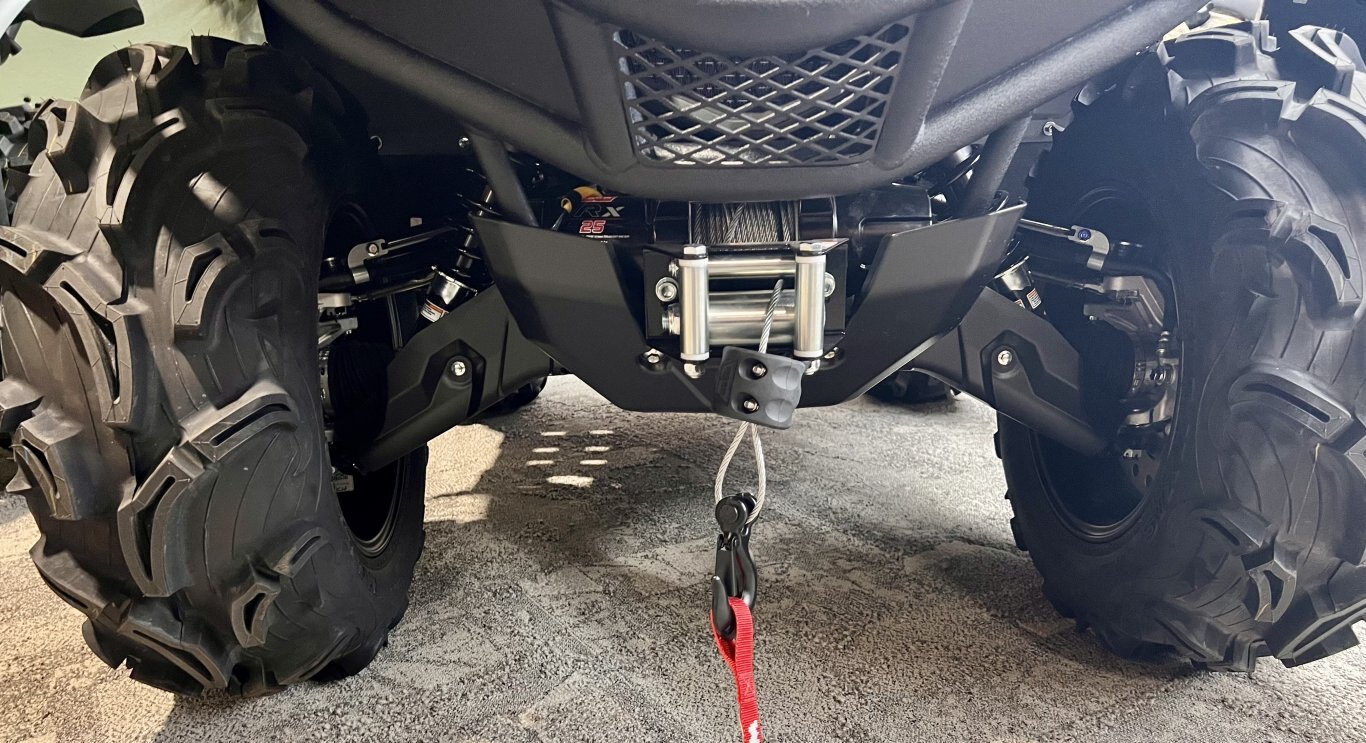

  • Winch bump stop to protect the winch cable and fairlead during recovery

Powered by Yamaha’s legendary 686cc fuel-injected engine and equipped with Ultramatic® automatic transmission and On-Command® 4WD, the Grizzly delivers smooth, predictable power and outstanding control in challenging terrain. Electric Power Steering (EPS) reduces rider fatigue and improves handling on long rides or technical trails.

Whether you're exploring deep Northern trails, hauling gear into camp, or tackling tough work around the property, the 2026 Grizzly EPS XT-R is built to keep going when the terrain gets rough.

Specifications
Model
Grizzly
Category Name
ATVs
Year
2026
Sale Type
New
Manufacturer
Yamaha
Vin
5Y4AML9W9TA304872
Color
FRT & REAR BUMPER, HAND GUARDS
Class
A
CodeName
YFM70GPZTM
Model Code
YFM70GPZTM
Titlestatus
CLEAN
Unitcondition
EXCELLENT
engine
Engine
Liquid-cooled, SOHC 4-stroke
Ignition
TCI
Starting
Electric
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
Lubrication
Wet sump
Displacement
686cc
Transmission
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Fuel Delivery
Yamaha Fuel Injection (YFI), 44 mm
Bore And Stroke
102 mm x 84 mm
Compression Ratio
10 : 1
chassis
Tires (Rear)
Maxxis® ZILLA® MU01 27 x 10-14
Brakes (Rear)
Dual hydraulic disc
Tires (Front)
Maxxis® ZILLA® MU01 27 x 10-14
Brakes (Front)
Dual hydraulic disc
Suspension (Rear)
Independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel
Suspension (Front)
Independent double wishbone; 5-way preload adjustment / 193 mm (7.6") of wheel travel
highlights

2026 Yamaha Grizzly EPS XT R Grey/Black Custom BuildCAPABILITY

For the trail rider looking for excitement in every ride, the ideal engine should balance strong big-bore power with immediate, responsive midrange. The Grizzly EPS XT-R features a potent 686cc engine with power delivery, torque and engine character all optimized for recreational riding.

2026 Yamaha Grizzly EPS XT R Grey/Black Custom BuildCOMFORT

An independent double wishbone suspension with 7.6 inches of front wheel travel and 9.1 inches at the rear, along with nitrogen-charged shocks offering 5-way adjustable preload, combine to provide excellent rider comfort on even the most challenging trails.

2026 Yamaha Grizzly EPS XT R Grey/Black Custom BuildCONFIDENCE

Center-mounted, heavy-duty 2-inch receiver comes standard on Grizzly EPS XT-R and can tow up to 1,300 pounds.
key features
  • Powerful 686cc engine
  • Speed-sensitive electric power steering (EPS)
  • On-Command® four-wheel drive system
  • High Performance Ultramatic® Transmission
  • Long Travel Shocks with wide-arc A-arms
  • Full-body skid plates
  • 2,500 lb Warn® VRX winch
  • 14-inch aluminum wheels wrapped in 27-inch Maxxis® Zilla tires
  • High-quality painted bodywork
critical data
Width
1250 mm (49.2")
Height
1270 mm (50")
Length
2070 mm (81.5")
Warranty
One year (unlimited mileage) / 10 Year Belt Warranty
Wheelbase
1250 mm (49.2")
Wet Weight
342 kg (754 lb)
Seat Height
917 mm (36.1")
Turn Radius
3708 mm (146")
Tread (Rear)
975 mm (38.4")
Fuel Capacity
18 L
Tread (Front)
1000 mm (39.4")
Towing Capacity
600 kg (1,322 lb)
Rack Capacity (Rear)
90 kg (198 lb)
Rack Capacity (Front)
50 kg (110 lb)
Maximum Ground Clearance
288 mm (11.3")
features & benefits

Key differences between Grizzly 700 EPS & Grizzly 700 EPS SE:

  • Factory installed WARN® VRX 25 winch
  • Oversized Aluminum alloy wheels
  • 27-inch Maxxis® Zilla® tires
  • Special Edition paint & graphics

ENGINE

  • Electric starting.
    • includes auto decompression system for fast, easy starts
  • Big Bore Engine Designed for Aggressive Trail Riding
    • For the trail rider looking for excitement in every ride with ideal balance of 700-class big bore power and strong midrange that gives immediate response
    • Rebuilt for 2019, the Grizzly EPS brings even more riding excitement without losing an ounce of comfort thanks to redesigned engine mounts
    • More useable power throughout rev range
  • High-Performance Ultramatic® Transmission
    • Class-leading transmission combine immediate response with advanced features like all-wheel engine braking
    • Proven to be the most durable ATV transmission on the market
    • Dual range, high- low transmission with reverse
    • High mounted belt cooling ducts help prevent water ingestion
  • Exclusive On-Command® 4WD
    • Keeps rider in charge with selectable 2WD, 4WD and 4WD limited-slip and 4WD with diff. lock modes
    • Delivers power consistently as required
  • Class-leading Electric Power Steering
    • Provides industry's best balance of steering assist and positive feedback from trail, with light steering, speed-sensitive steering response and minimal fatigue
  • High-Mounted Air Intake
    • Tackle mud and water thanks to the Grizzly's high-mounted air intake layout
    • Increases power and torque while providing additional room for on-board storage
    • Easy, tool-less servicing of the foam air filter
  • Stainless Steel Exhaust
    • To maintain clean-running performance the Grizzly EPS uses a stainless steel exhaust system
    • Features screen-type spark arrestor for greater power with minimum noise output
  • High capacity Radiator
    • Slow-speed, technical riding can bring added stress and heat, so the Grizzly EPS has a high-capacity radiator with fan assist
    • Delivers plenty of air flow for maximum cooling efficiency
    • Positioned high in the frame for optimal protection

Chassis

  • Rugged steel type frame.
    • compact design provides nimble, responsive handling
  • 27 inch SE Tire Package
    • For deep mud, steep slopes and any other poor traction terrain, the Grizzly EPS SE comes ready to climb
    • Big 27 inch Maxxis® Zilla® tires mounted on strong, lightweight alloy rims
    • Uses dual-compound sidewalls and an extra-tough carcass construction to handle anything you can throw at them
  • Aggressive and Durable Styling
    • Rugged composite front bumper resists scratching and rust
    • Injection-molded fenders and CV joint guards protect again rock and debris
  • Independent Double Wishbone Front and Rear Suspension
    • 7.6 inches of front wheel travel / 9.1 inches of rear travel
    • Provide excellent rider comfort even on the toughest trails
    • Nitrogen-charged shocks with 5-way adjustable preload
  • Generous Ground Clearance
    • To handle any terrain, the Grizzly EPS offers impressive 11.8 inches of maximum ground clearance
    • Full-length composite skid plates provide protection against rock and debris damage
  • Underseat Fuel Tank
    • Optimized 4.76 gallon fuel tank is located under the seat for excellent mass centralization and handling
  • LED Headlights and Taillights
    • Uses less power and creates a brighter, sharper illumination
    • Offers maintainance free durability
    • Handlebar-mounted halogen work light provides additional lighting that moves with rider input for excellent visibility
  • Four-Wheel Hydraulic Disc Brakes
    • Powerful and consistent braking come standard on every Grizzly EPS model thanks to four-wheel hydraulic disc brakes
    • Unmatched braking feel
  • Rugged & roomy floorboards.
    • excellent rider foot protection
    • helps reduce keep mud & water splash hitting rider
  • Work-Ready Tow Capacity
    • Center-mounted, heavy duty two-inch receiver comes standard on Grizzly
    • Capable to tow more than 1300 pound

Design

  • Factory installed WARN® winch

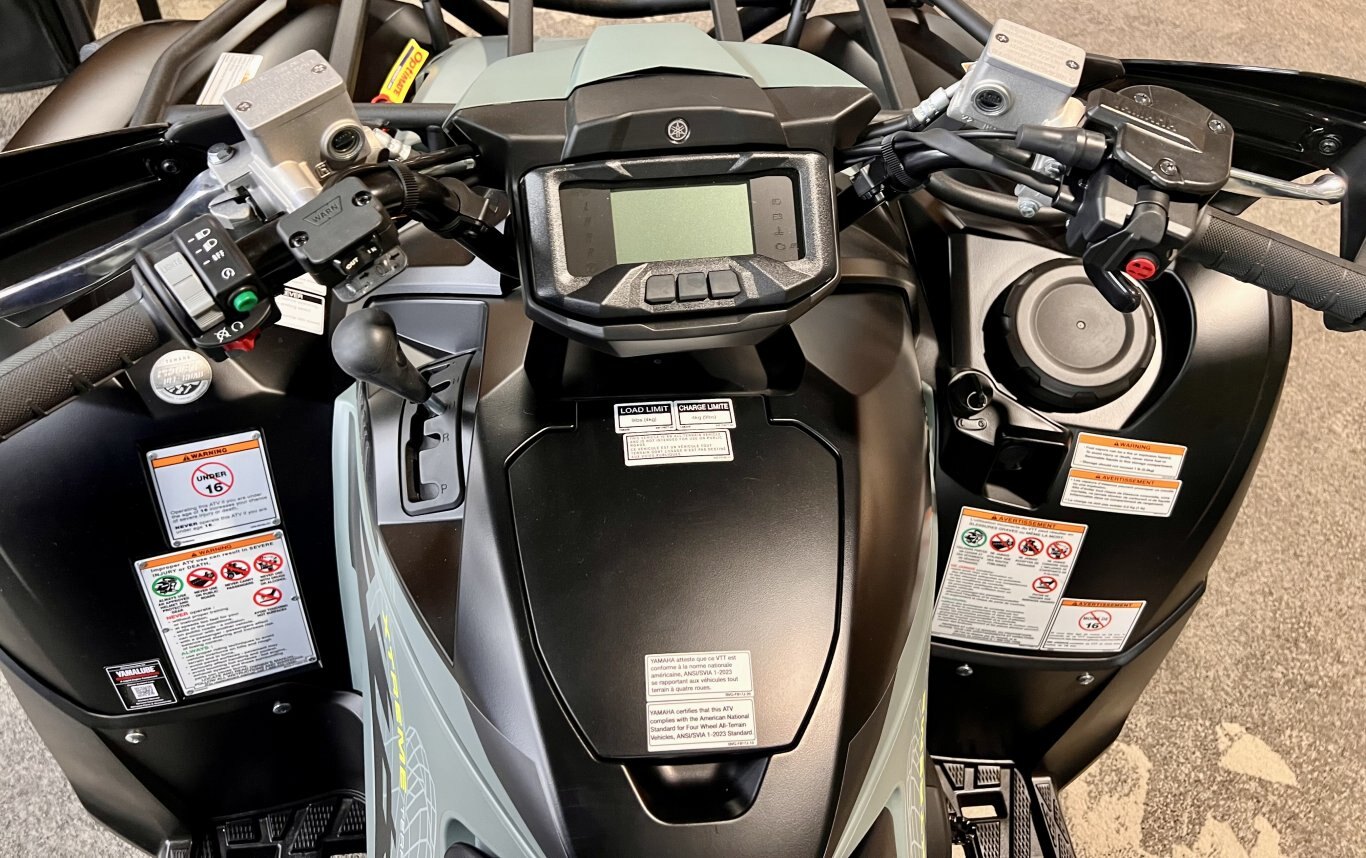

  • Easy-read Instrument Package
  • Plush Seat
    • Improves rider comfort for extended days exploring every trail
    • Plenty of room for the rider to move during aggressive riding
  • Ready for Accessories
    • Engineered in concert with a range of accessories for perfect fit and function
    • Standard 12V power point to keep devices charged.
